KIO6800 Series

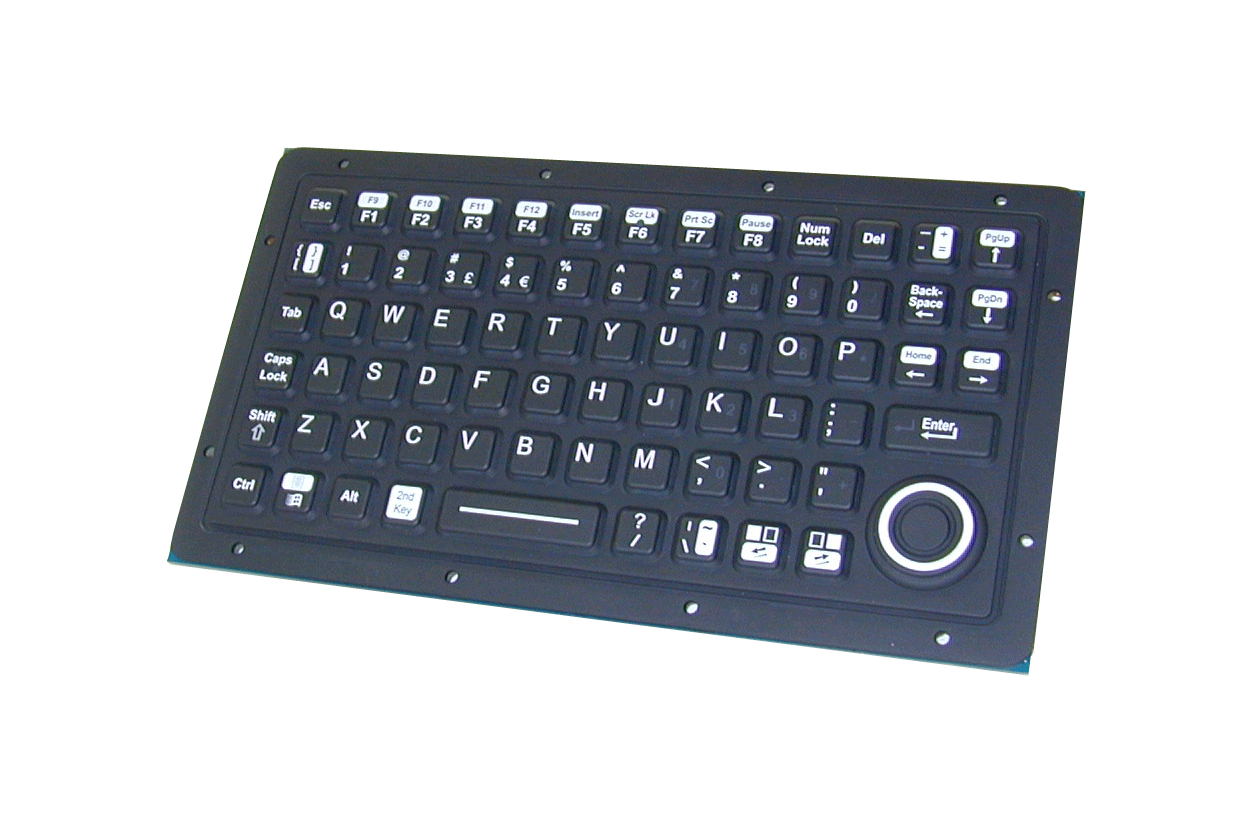

KIO6800 Series - NEMA 4 (IP66) Sealing OEM Rugged Keyboard w/ OrbitalMouse®

The KIO6800 Series are NEMA 4 (IP66) sealing industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print. These miniature keyboards include an embedded numeric keypad (patent pending), and are combined with CTI's OrbitalMouse® button style mouse pointer. ArrowMouse™ mouse pointers offer high reliability and ease of use.

CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad. These OEM keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. These mini keyboards are a perfect fit for custom panels, and are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts. The KIO6800 Series is also available in anodized aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66).

KIO6800 Miniature Keyboard w/ OrbitalMouse® Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
KIO6000 Series Key Symbol Quick Reference Guide (PDF)
KIO6800-BX Series Backlit Keyboards
Understanding NEMA and IP Ratings (PDF)
How to select an Industrial Rugged Keyboard

KIO6x000 Industrial Keyboard
